Cleaning solutions for air-conditioning systems
Learn about the main reasons to invest in the air duct, air conditioning system, splits and heat exchanger tube cleaning sector
TECAI, WORLDWIDE CLEANING REFERENCE
The most advanced technology for cleaning of climate control and air conditioning systems, heat exchangers and splits
THE TECAI METHOD
Learn what the Tecai method consists of and the equipment it uses
Go to Tecai sets configuration, see the purpose of each piece of equipment in them and the price of each of them
Discover the machines for the cleaning of coils, fan coils, splits, air treatment units (ATU), video inspection systems for ducts and disinfection of air conditioning systems
See some of the success stories from some of the hundreds of companies that have put their faith in Teinnova over these last 15 years of experience as a manufacturer.
WHY INVEST IN THIS BUSINESS
A big market in many sectors
THE TECAI SYSTEM, A WORLDWIDE CLEANING REFERENCE
Why is TECAI a world leader in the cleaning of climate control and air conditioning systems?
- TECAI has the most advanced technology on the market in brushing systems as well as in compressed air injection, and in video inspection systems.
- Design based on more than 15 years of practical experience.
- Gives your business a technical and professional image.
- Savings on labour costs thanks to equipment that can reduce cleaning time by up to a factor of three
- Successfully used in more than 70 countries.
THE TECAI METHOD
Description
For the cleaning of air conditioning ducts, a dry cleaning is carried out consisting of dragging or shaking the contaminants inside either through air injection or by rotary brushing, and then to suck out the suspended particles with our powerful vacuum cleaner with HEPA filtering
CLEANING BY AIR INJECTION
The nozzle injects large volumes of air inside the duct, cleaning the surface of the duct and it adapts to ducts of any shape, size and material.
DUCT CLEANING BY BRUSHING
This is the most widespread method in the field of air duct cleaning. In our TECAI range we offer two different models:
VISIOAIR
This air injection system, drags along the dirt stuck to the ducts at the same time that it views, records and verifies the cleaning
ROTAIR
Electric brushing system, with no need to connect to a compressor, to clean small and medium sized ducts.
AUTO ELEMENT
Pneumatic brushing system, for cleaning ducts of any size.
TECAI SETS FOR CLEANING DUCTS AND EXTRACTION SYSTEMS
Equipment for cleaning air ducts up to 600 mm in diameter, by electric brushing
√ Electric duct cleaning machine (no compressor needed).
√ Small in size and very portable.
√ Control of the direction of rotation with a timer.
√ Includes the Proaxis safety system to prevent the shaft breaking
√ Compact and very quiet vacuum cleaner with absolute HEPA filter that creates a negative pressure in the duct.
√ Nylon brush packs for square and round ducts.
Equipment for cleaning air ducts up to 1200 mm in diameter, by pneumatic brushing
√ Pneumatic brushing air duct cleaning machine
√ With optional remote control
√ With enough power to clean ducts up to 1 meter in diameter
√ Control of the direction of rotation with a timer.
√ Compact and quiet vacuum cleaner with absolute HEPA filter that creates a negative pressure in the duct
√ Professional portable air compressor
√ Nylon brush packs for square and round ducts
Equipment for cleaning and inspecting all types of air ducts, by injection of compressed air. A technology three times as fast as brushing.
√ Conduit size up to 800 mm
√ 3 times faster than any brushing system on the market
√ It has two 15-meter hoses: one with an HD camera head for simultaneous cleaning and video inspection, and the other with a rotating brush for the most ingrained residues
√ It uses the same access point as the vacuum, so it can reach up to 30 meters from a single point.
√ The nozzles adapt to ducts of any size and shape, because it performs a surface cleaning.
√ A technology suitable for unclad fibre ducts.
√ Compact and very quiet vacuum cleaner with absolute HEPA filter that creates a negative pressure in the duct.
√ Powerful compressor (1050 l/m at 10 bar), quiet (67 dB) and portable. Three-phase.
√ Optional remote control
SET TECAI PLUS
Description
TECAI PLUS SET. A set for cleaning ducts up to 400 mm in diameter. Being electric, it doesn’t need an air compressor, very portable
TECAI PLUS CONFIGURATION
ROTAIR
DUCT CLEANING MACHINE
Rotair is the ideal compact solution for cleaning ducts up to 600 mm in diameter. An electric brushing solution, which in its latest version, includes the only current system on the market for the prevention of shaft breakage, ProAxis.
HEPAIR 2000
Do you need an effective aspiration?
Hepair 2000 is the solution. The system collects, filters and traps all particles loosened by brushing and air injection systems.
Its powerful vacuum motor absorbs all particles raised and these are held inside the filters, thanks to its system of decantation and filtration.
How does it help you?
Gets to where you need it. Thanks to your 3 meter hose with telescopic supports you can reach all ducts regardless of their height.
100% Filtration. With the three stages of filtration, and your HEPA absolute filter, no particle will escape you.
TECAI PRO SET
Description
TECAI PRO SET. The brushing set for all types of air ducts
TECAI PRO CONFIGURATION
AUTO ELEMENT
Pneumatic brushing system, for cleaning ducts of any size.
Solutions for the cleaning of air ducts are many, but when you need strength, power, reach larger diameter ductwork and work in continuous without sacrificing efficiency, only then we can be talking about Teinnova’s pneumatic solutions for cleaning air ducts.
Higher power
The system uses compressed air to power a motor housed in the tip of a 20 meter long flexible hose. It is the most reliable and robust tool for the cleaning of air ducts.
Thanks to its power and strength, it is the most appropriate solution for the cleaning of large ducts, or for medium and big jobs, when it comes to cleaning many meters of duct
HEPAIR 2000
Do you need an effective aspiration?
Hepair 2000 is the solution. The system collects, filters and traps all particles loosened by brushing and air injection systems.
Its powerful vacuum motor absorbs all particles raised and these are held inside the filters, thanks to its system of decantation and filtration.
How does it help you?
Gets to where you need it. Thanks to your 3 meter hose with telescopic supports you can reach all ducts regardless of their height.
100% Filtration. With the three stages of filtration, and your HEPA absolute filter, no particle will escape you.
AR 16
Powerful air compressor for duct cleaning (400 l/m at 10 bar), quiet and portable.
TECAI ADVANCED SET
Description
TECAI ADVANCED SET.System based on air injection that uses the best technology to drastically reduce its cost per linear meter of duct and gives it an advantage when competing for large-scale cleaning contracts such as hospitals, shopping centres and hotel complexes
CONFIGURACIÓN TECAI ADVANCED

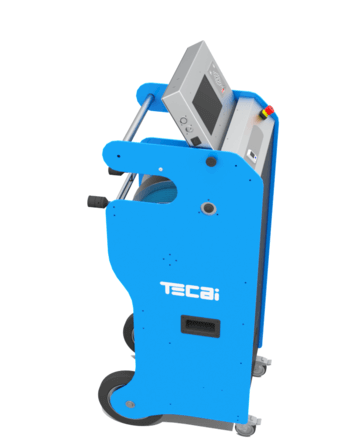

VISIOAIR
Fast, affordable and effective
Do you need the maximum competitiveness when you present an offer to your customer for the air-conditioning duct cleaning? Do they also request the maximum guarantees? The system for cleaning air-conditioning conduits by air injection, trapping the dirt adhering to the tubes and at the same time displays, records and verifies cleaning by means of a micro-camera installed in an intelligent head.
Through its perimeter cleaning technology, it runs the full length of the duct, removing and sending all the particles of dust and dirt to the suction sleeve connected to the Hepair vacuum systems
HEPAIR 2000
Necesitas una aspiración efectiva?
Hepair 2000 es la solución. El potente equipo genera una presión negativa en los conductos que captura cualquier partícula del interior de los conductos. La triple etapa de filtrado retendrá todas estas partículas, decantándolas por su tamaño con los diferentes módulos.
¿Cómo te ayuda?
Llega donde necesites. Gracias a su manguera de 3 metros con soportes telescópicos podrás llegar a todos los conductos independientemente de su altura. Filtración 100%. Con las tres etapas de filtración, y su filtro absoluto HEPA, no habrá partícula que se te resista
AR 100
Powerful three-phase compressor (1050 l/m at 10 bar), quiet (67 dB) and portable
ACCESSORY EQUIPMENT FOR CLEANING AIR CONDITIONING SYSTEMS
COILS, VIDEO INSPECTION, DISINFECTION AND MEASUREMENT
DUCT VIDEO INSPECTION SYSTEM

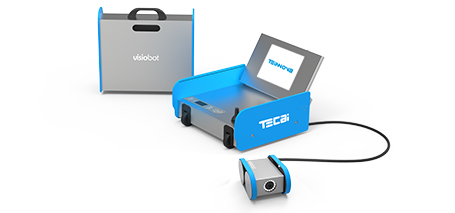

VIDEO INSPECTION SYSTEM VISIOBOT, VISIOMAX BLUE AND VISIONANO
Video inspection robot for climate control systems. Range of 20 m.
Compact and portable video inspection system. Range of 30 m
Portable, lightweight duct video inspection equipment. Range of 4 meters
EQUIPMENT FOR DISINFECTION OF HVAC SYSTEMS

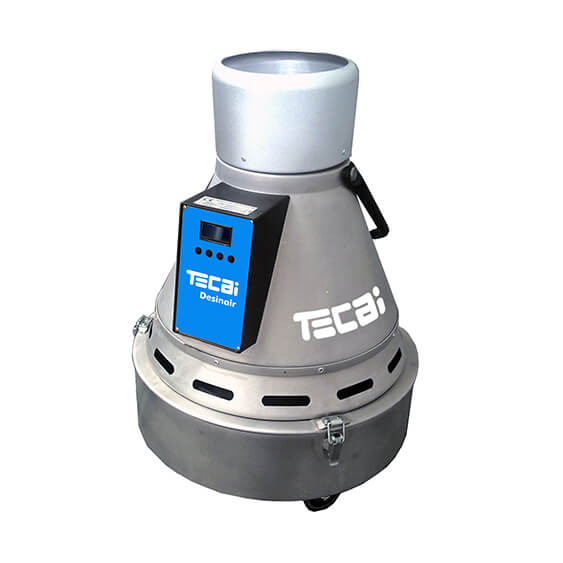

DESINAIR AND FOGAIR
Air conditioning duct disinfection machine
Climate control duct disinfection machine. Cold nebuliser
MACHINES FOR MEASUREMENT OF INTERIOR AIR QUALITY
MICROBIO & TESTAIR
Microbiological air measurement equipment for VAC systems
Particulate matter sampler for VAC systems
